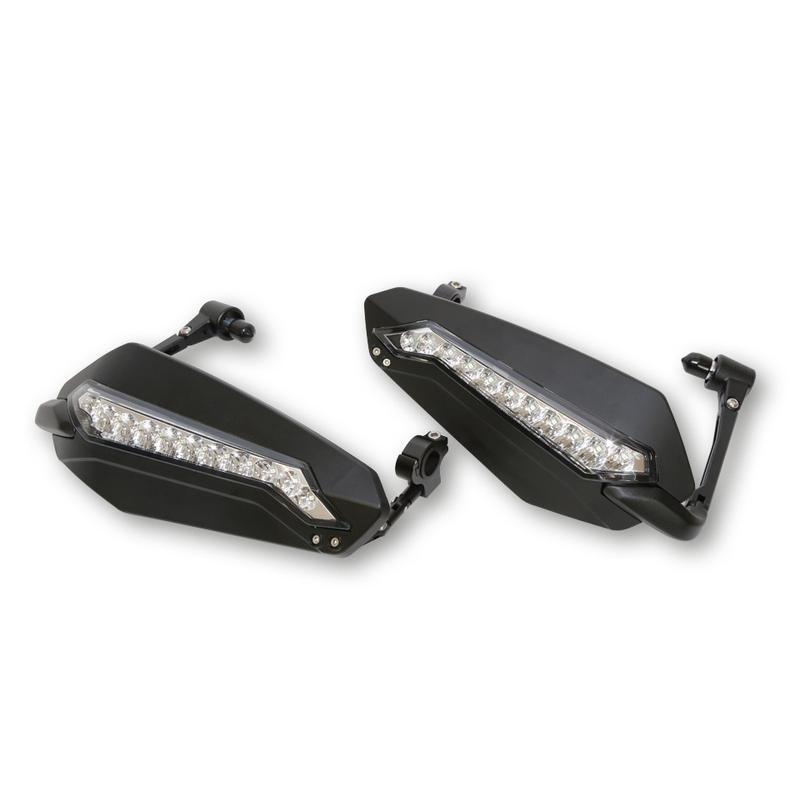

HIGHSIDER 320-100 : HIGHSIDER Enduro Handguards With LED illuminant

HIGHSIDER hand protectors with LED daytime running light and parking light

The ingenious accessory for all Enduro riders - hand protectors with integrated daytime running light (TFL) and parking light function. 11 High Power LEDs ensure perfect recognizability in road traffic and a spectacular optical appearance. The TFL switches to dimmed parking light mode when switching to low beam. Due to the high-quality aluminium mounting the protectors get a high stability, E-examined.

Fits most handlebars with an inner diameter of approx. 13 mm to 20 mm and an outer diameter of approx. 21 mm to 26 mm.

Connections

Black cable = ground (-)
Connect red cable = plus (+) to switched plus of ignition
Connect white cable = control cable to parking light (+)

Power consumption

Parking light mode: approx. 12V / 0.06A / 0.73W
Daytime running light: approx. 12V / 0.32A / 3.84W
