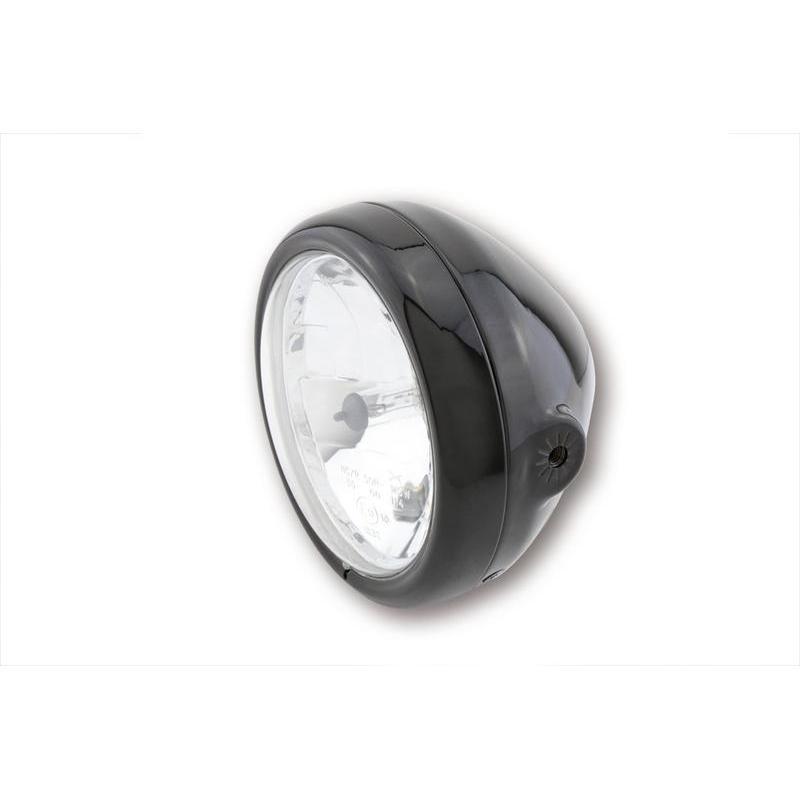

SHIN YO 223-020 : SHIN YO Pecos Headlight 5 3/4 Black Glossy"

SHIN YO 5 3/4-inch Pecos headlight, black gloss, E-tested

H4 headlight with clear glass in a black metal housing with side mounting points. The headlamp with parking light has an asymmetrical reflector and adjustable inner ring.

Lamps: H4 12V 60/55 W

Dimensions:
- Housing diameter: 165 mm
- Total depth including curved glass: 145 mm
- Mounting: lateral mounting M8 Housing depth: approx. 75 mm
- Center side mounting holes to rear

- Connections:
- Black cable = ground parking light (-)
- Brown cable = parking light (+)
- White cable = dipped beam (+)
- Blue cable = high beam (+)
- Green cable = ground (-)

Included: 1 piece, including lamp

Notes:
Asymmetrical reflector - approved for right-hand traffic only

Replacement insert: Art. no.-Item No. 226-130
