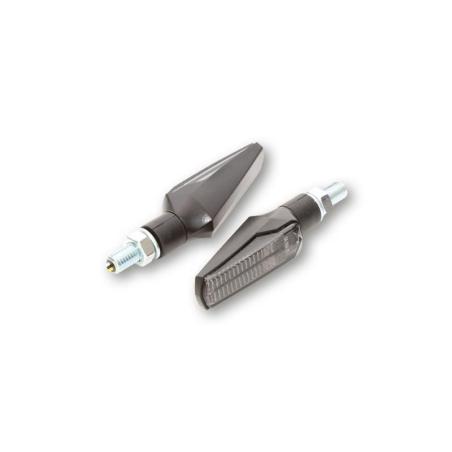

SHIN YO 204-175 : SHIN YO Fineline 2in1 LED Indicators/Position Light

SHIN YO LED indicator / position light FINELINE, E-approved: For front
With black plastic housing and rubber handle.

The FINELINE with tinted glass has a Light Guide System with 4 SMD LEDs. For all those who place high demands on their new light source and rely on light colour and brightness for their lighting. You will be surprised how much power and brightness comes from this future-oriented technology. The light guide system is designed to transport light from the light source to a point with minimal loss. This creates a beautiful light effect without seeing the LEDs.

Dimensions:
Width A: 58 mm
Width B (rubber handle 12 mm): 70 mm
Height C: 17 mm
Depth D: 25 mm
Threaded bolt: M 8x 1.25

Connections:
Yellow cable = Flasher (+)
Black cable = Ground (-)
White cable = Position light (+)

Scope of supply: 1pair

Optinal orderable:
Fitting LED taillight / Binker FINELINE, Article no.254-174
Fitting LED indicators FINELINE, article no.204-174
