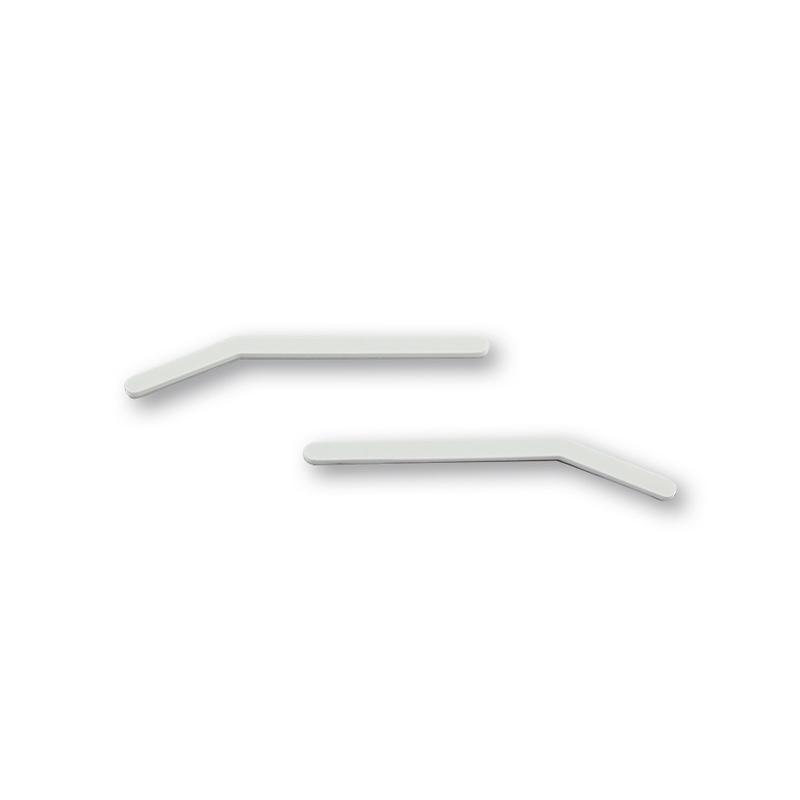

HIGHSIDER 223-300 : HIGHSIDER Glow-PL1 LED Position Light

HIGHSIDER LED position light GLOW-PL1, E-approved

This special LED position light is a shapely, flat module which can be laminated into coverings, for example, or mounted quickly and easily thanks to the adhesive tape on the back.
The LEDs have a modern cold white appearance.

Dimensions:
Width: 110 mm
Width up to the bend: 75.6 mm
Width after bend: 34 mm
Height: 4.5 mm
Depth: 4 mm
Cable length: 1000 mm

Connections:
Red = Position light (+)
Black = Ground (-)

Delivery includes: 1 pair

Note:
Connect the LED position light GLOW-PL1 as described in the assembly instructions, never without the enclosed electronic module.
