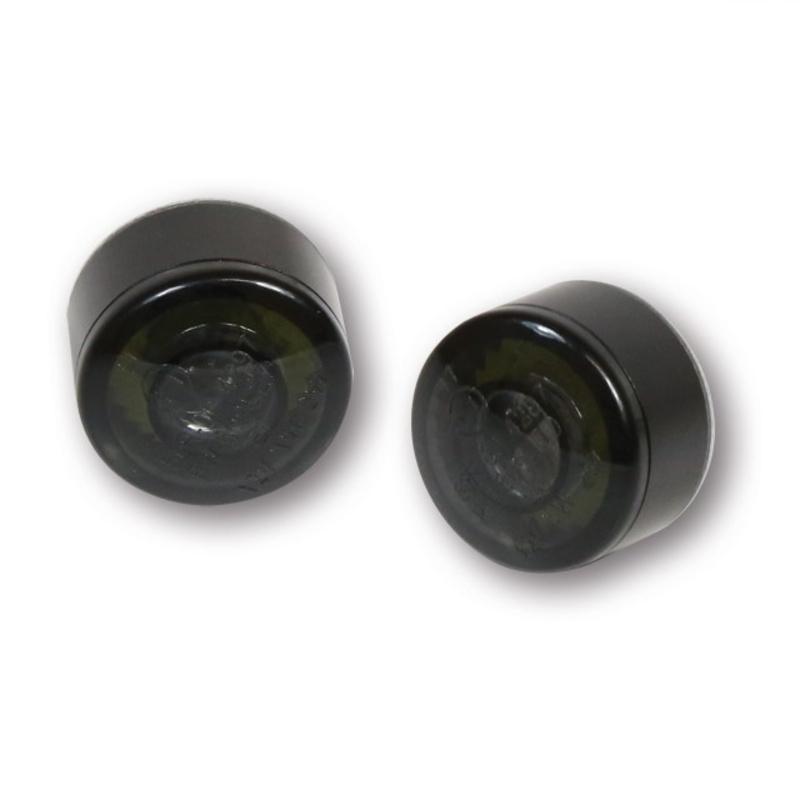

HIGHSIDER 204-172 : HIGHSIDER Apollo LED Indicator/Position Light

HIGHSIDER Apollo LED turn signal/position lights module

LED turn signal/position lights module suitable for recessed or surface mounting, black aluminium ring with tinted glass, E-approved.

For this innovative lighting technology, 2 very bright SMD LEDs are installed in the center, which enable an extremely small design. The outer ring on the other hand consists of the new COB technology (Chip On Board). The new LED chip embedding for high-power LEDs achieves a very high luminance with currently best possible efficiency and lifetime. This also allows higher light values than withconventional LEDs can be achieved. This module is supplied with a black anodized aluminum ring that fits over the base body.

With the innovative Turn signal series from HIGHSIDER. Show not only where you want to go, but also who you are.
That is trend-setting design at its best.

Dimensions:
A1: 13 mm
A2: 9 mm
D1: 22 mm
D2: 20mm

Threaded bolt: M8, length: 12 mm

Connections:
Black cable = ground (-)
Yellow cable = indicator (+)
White cable: parking light (+)

Supplied with: 1 pair

Installation location: Front
