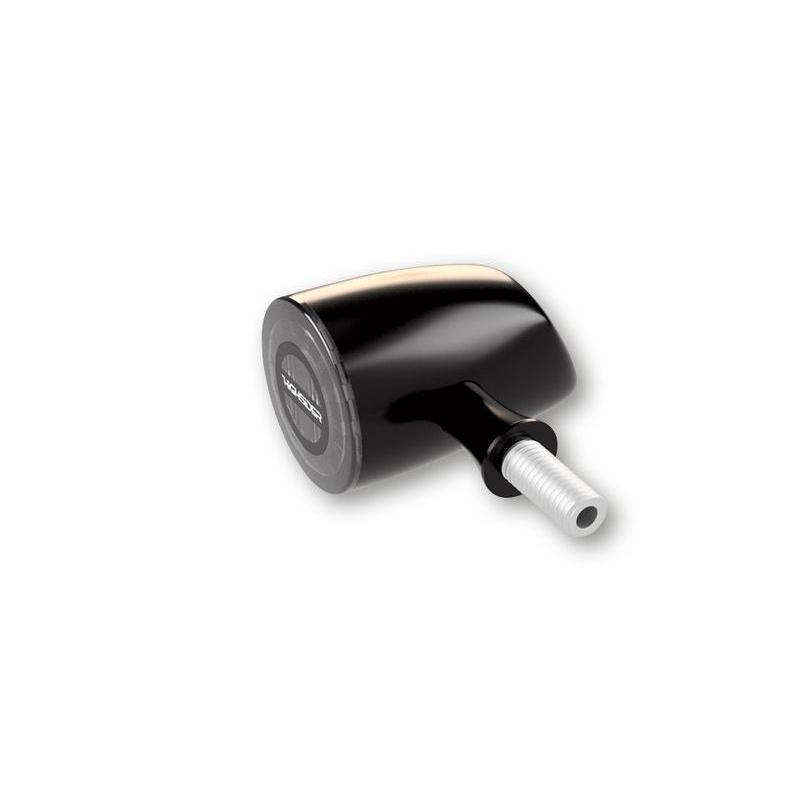

HIGHSIDER 254-342 : HIGHSIDER ROCKET Classic 3in1 LED Taillight, Brake Light, Indicator

HIGHSIDER ROCKET CLASSIC 3in1 LED rear light, brake light, turn signal, aluminium housing, tinted glass, pair, E-approved for rear.

Inspired by organic shapes, HIGHSIDER product development has designed a completely new package shape without losing sight of the past.
The soft, round form supports the classical associations evoked by the viewer.

In the center 6 very bright SMD LEDs are installed. The outer ring consists of COBs (Chip On Board). The new LED chip embedding for high-performance LEDs achieves very high luminance with the best possible efficiency and service life. This also allows higher light values to be achieved than with conventional LEDs.

Dimensions:

• A Diameter: 45 mm


• B Width: 67 mm


• C Depth: 70 mm


• Handle length: 24 mm


• Fixing bolt with M8 thread, length: 17 mm.

Connections:

• Black cable = ground (-)


• Yellow cable = tail light (+)


• Red cable = brake light (+)


• Blue = turn signal (+)

Scope of supply: 1 pair, housing color selectable.
