SHIN YO 255-680 : SHIN YO LED Taillight X-Wing

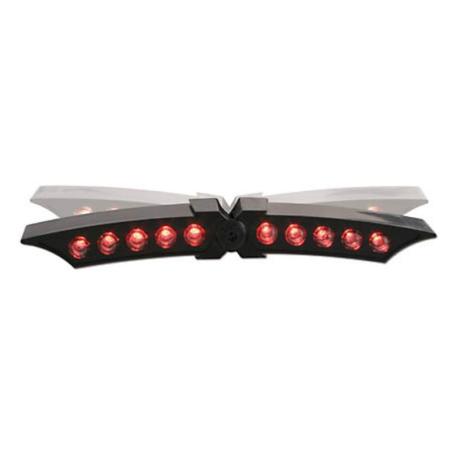

SHIN YO LED rear light / brake light X-WING
The flexible rear light with black plastic housing is made for easy conversion. The shapely wings are adjustable by 20 degrees and therefore adapt well. Adjustable 10 degrees down and 10 degrees up. Suitable for screwing on or laminating in, E-tested.

Dimensions:
Width: 137,2 mm
Height at the pivot point: 16 mm
Height at the wing: 13 mm
Depth: 20,8 mm

Technical data:
green = Mass (-)
blue = Brake light (+)
yellow = Driving light (+)

Scope of supply: 1 piece
