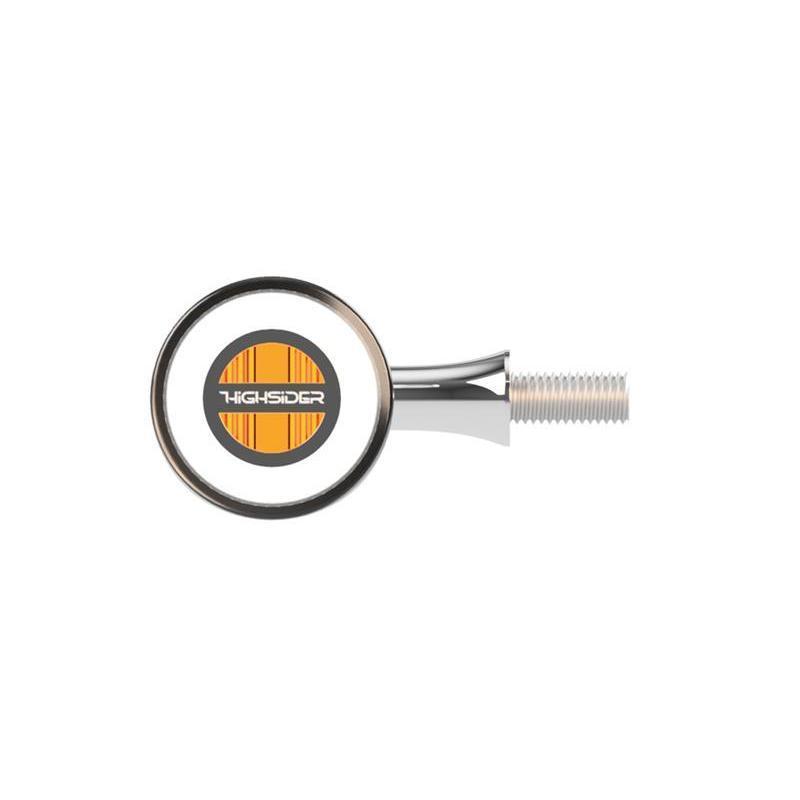

HIGHSIDER 204-349 : HIGHSIDER Rocket Bullet 2in1 LED Indicator/Position Light

HIGHSIDER Rocket Bullet LED turn signal / position light with aluminium housing and tinted glass.

The tapered variant to the HIGHSIDER Rocket Classic - for front E-approved.

In the center are 6 very bright SMD installed. The outer ring consists of COBs (Chip On Board). Thanks to the new LED chip embedding for high-power LEDs, a very high luminance can be achieved with currently the best possible efficiency and service life. This also allows higher light values to be achieved than with conventional LEDs.

Dimensions:

• A Diameter: 45 mm


• B Width: 65 mm


• C Depth: 64 mm


• Pole length: 24 mm


• Fixing bolt with M8 thread, length: 25 mm.

Connections:

• Black = ground (-)


• Yellow = turn signal (+)


• White = position light (+)

Scope of delivery: 1 pair
