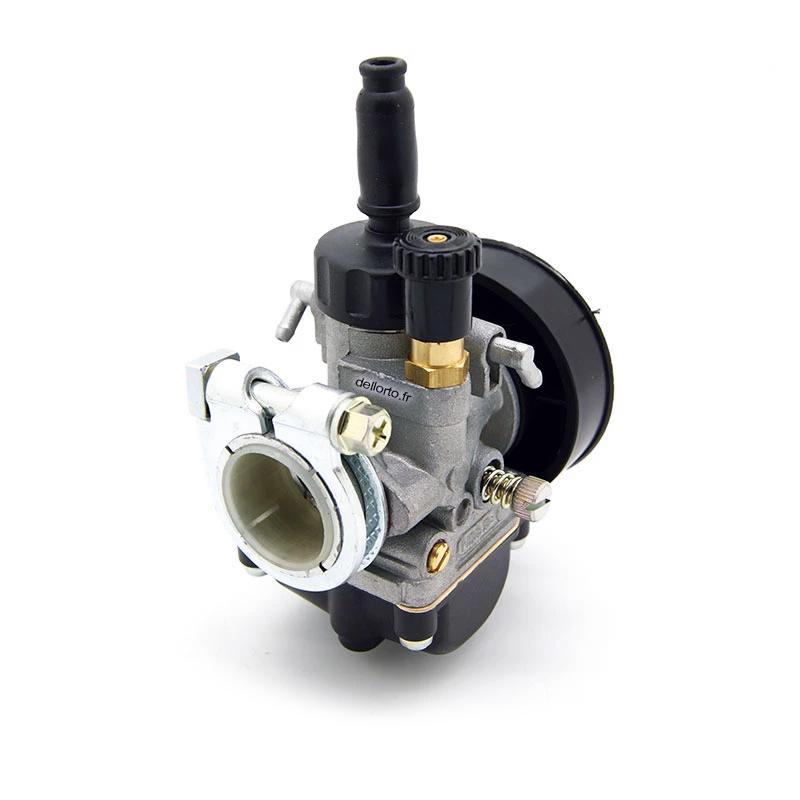

DELL ORTO 02568 : DELL ORTO Carburetor PHBG 19,5 AS

Carburettor type: Dellorto PHBG

Mode of operation: 2-stroke

Ø Venturi (mm): 19.5

Ø Connection width (mm): 24

Connection type: clamp-on (rigid)

Air filter connection: M32 x 1.25

Main diameter: 85

Idle metering: 50

Starting distance: 60

Seed needle: W 09

Mixing tube/nozzle: AN 262

Float: 4.0g

Gas slide: 40

Connection: 2T mixer: available

Choke: direct operation (lever, pull button...)

Brand: Dellorto
